Gadget Document: VLMs free up efficiencies for All International Equipment

When your small business fashion facilities on having the correct portions in inventory and transport them hastily and correctly so your buyer’s techniques can get again in manufacturing, static garage strategies and guide order selecting can fall at the back of the expansion curve.

At All International Equipment Provide, a one-stop store for equipment parts, this strategic wish to raise a big SKU combine for its shoppers, mixed with expansion, ultimately resulted in demanding situations together with a scarcity of space for storing in cabinets and racking, and hard work inefficiencies in getting orders picked.

Roscoe, Unwell.-based All International Equipment Provide shares about 15,000 portions to fulfill the desires of its buyer base, which contains car providers, plastic injection molding firms, activity stores and others who use device gear and wish top quality, brand-name portions.

When the corporate moved into its present facility in 2015, a scarcity of space for storing wasn’t a topic, says Kyle Koepp, senior director of logistics with All International, however speedy expansion over the last 10 years mixed with the strategic wish to stay a big collection of portions in inventory on the warehouse resulted in a loss of area. The SKU combine, which spans portions reminiscent of pumps and motors, hydraulic gadgets, oil chillers and lots of small device portions and parts, couldn’t abruptly be pared down, since having the correct portions in inventory for same-day cargo is core to the corporate’s value-add.

“Gadget parts can ruin down hastily, so our shoppers can stand to lose 1000’s to even into masses of 1000’s of greenbacks according to day with a device down,” says Koepp. “This is why we feature a big number of portions to verify now we have what shoppers want, when they want it.”

By means of 2021, the wish to support garage and order selecting potency used to be obvious, so more than a few possible choices—new racking, putting in a mezzanine and more than a few automation answers—had been all thought to be, however the trail that emerged used to be to deploy vertical raise modules, or VLMs (Kardex), adopted through a conveyor machine so as to add additional efficiencies to the operation.

VLMs had been a excellent center floor, Koepp provides, between higher-cost automation and easily revamping static garage and structure, to stay alongside of increased volumes whilst nonetheless transport in-stock portions hastily.

“Our purpose has at all times been to ship the most efficient revel in for our shoppers, together with getting portions now we have in inventory out at the similar day,” says Koepp. “The VLMs and the conveyor machine had been simply your next step to stay alongside of our corporate’s expansion.”

Achievement meets the undertaking

All International serves the portions achievement wishes of its shoppers in a couple of tactics: from its DC, box products and services, restore products and services and custom-engineered answers. Of the 15,000 portions carried, maximum (about 12,000 SKUs) are held within the warehouse, although the opposite departments additionally stay portions readily available.

After comparing answers to deal with the garage crunch, All International deployed 3 VLMs from Kardex, says Koepp, going are living with the primary 3 gadgets in July 2022. The implementation carried a couple of advantages, in accordance with the garage density of the VLMs, and their goods-to-person selecting potency, which cuts conventional commute as opposed to selecting from garage in aisles. Key effects come with:

• Decreasing the garage footprint through 75% as opposed to the former static garage. Whilst some static garage stays in use for higher portions and assemblies, as of late about 9,000 of the 12,000 SKUs within the warehouse are within the VLMs.

• The VLMs have larger hard work selecting potency through 400% whilst attaining 99.8% order accuracy.

• A fourth VLM used to be added in December 2023. The distance the VLMs freed up made it conceivable to additionally deploy a motor pushed curler (MDR) conveyor machine that works in unison with the VLMs and a collection of packing and manifesting stations.

“The VLMs have had a cascading impact at the potency of the warehouse,” says Koepp. “As soon as the VLMs had been in and loaded with portions, we had been ready to have room to construct our conveyor machine and installed up to date receiving and manifest spaces.”

Koepp stresses that rapid and correct achievement have at all times been core to corporate’s industry fashion, along side different components like product wisdom in customer support, box carrier and engineering make stronger. Gross sales and quantity expansion merely drove a brand new higher way as opposed to static garage and guide selecting.

“After we moved into this area, it used to be giant and new, however we quickly outgrew it—a excellent drawback to have, however nonetheless an issue,” Koepp explains says.

The brand new means

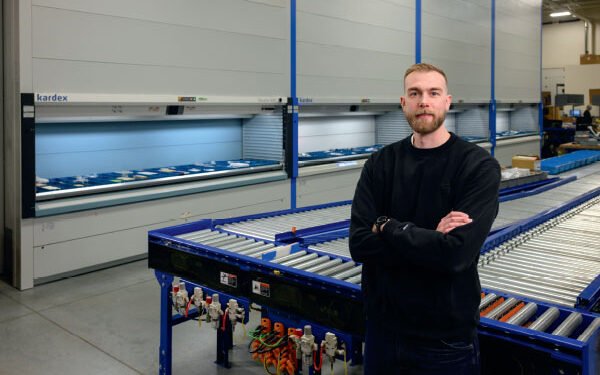

The conveyor machine is targeted across the 4 VLMs, the place one order picker can equivalent the selecting quantity that generally took a staff of 4 staff selecting from static garage positions prior to. The VLMs and the Kardex instrument that runs the automation are built-in with All International’s endeavor useful resource making plans (ERP) machine, so the stock information and ranges between the techniques keep in sync, and replenishment of the VLMs can happen day-to-day as wanted.

Minimum commute is needed on the VLM workstations. The VLM brings trays with wanted portions to a picker get right of entry to window, which has an LED-based show or “navigation” bar that displays the thing and amount data for each and every select. All International additionally opted so as to add a laser beam indicator from Kardex to the VLMs that shines a coloured gentle beam on the SKU to be picked, including every other cue for accuracy. Items are picked to totes underneath a batch selecting means.

The conveyor machine is adjoining to the financial institution of 4 VLMs, and is designed to serve a couple of roles, together with taking out finished order totes from the VLM zone, and conveying them to the website’s pack out and manifest stations.

The conveyor machine additionally helps a collection of receiving stations to procedure and induct inbound items, and the website’s order consolidation procedure from different zones of the warehouse. On the other hand, maximum selecting is with the 4 VLMs, which deal with 66% of order quantity in simply 2,000 sq. ft of ground area. This equates to kind of 10% of the entire sq. photos of the warehouse.

All International’s repairs and warehouse staff put in the conveyor, whilst All International’s engineers configured the sensors for the machine, together with color-detecting sensors that establish the other coloured totes used with the machine, supporting correct tote routing.

A batch selecting procedure is used with the VLMs, with order totes for each and every batch of 12 orders organized on a delegated batching station house on a piece of conveyor adjoining to the VLMs. Each and every 10 mins, a printer close to the VLMs prints a bunch of select tickets. Each and every price tag represents one order and is assigned to a unmarried order tote.

To cause the batch selecting, the picker scans each and every select price tag and puts it in an order tote. As soon as all of the batch has been scanned, the Kardex Energy Pick out instrument activates the VLMs to paintings concurrently to ship trays with the wanted portions to the get right of entry to home windows. The employee follows steering at the VLM navigation bars, in addition to the laser pointer on each and every VLM, to correctly select the proper portions in the proper amounts.

The employee then turns to the adjoining batching station and follows put-to-light presentations at the fringe of the station to put the proper amount of each and every section within the corresponding totes on the station. For orders most effective desiring items from the VLMs, the picker hits an entire button and slides the tote onto the conveyor.

The totes then are routinely conveyed to a collection of guide manifesting/transport stations. If further portions are wanted from different zones, the tote is routed to an induction level for portions being manually picked from the shelving and high-bay zones of the DC.

As soon as all portions had been picked for orders desiring pieces from the opposite zones, the finished order tote is routinely routed to packing and manifesting.

General, the VLMs together with the conveyor machine allow sooner, extra hard work environment friendly selecting with items routinely routed to your next step.

“No longer most effective have we accomplished a significant relief in steps, however the machine additionally avoids delays or confusion in portions being brought to the proper location,” says Koepp.

Worker acceptance

The warehouse team of workers had some preliminary fears that the VLMs and conveyor could be too difficult to perform, however the ones had been temporarily triumph over as soon as the body of workers noticed how simple the VLM gentle steering used to be to practice, and the conveyor induction procedure used to be easy.

Complete integration between the ERP machine and the Kardex Energy Pick out stock control instrument intended no reproduction access of knowledge into other techniques.

“The warehouse staff used to be unaware of the way seamless the mixing could be between our ERP and the VLM instrument. When they noticed it paintings, other folks had been on board in no time. They had been underneath the influence that they’d be manually typing partially numbers on a small display, looking forward to an element to come back down one after the other.”

Whilst staff had been skilled at the new procedure and consumer interface previous to deployment, the total buy-in came about after the techniques went are living and staff may just see the simplicity of the answer. The features in selecting potency additionally intended that staff may just center of attention different achievement duties, like receiving, managing stock stored in high-bay racking or within sight shelving, and packing, manifesting and order completing steps the most important to getting orders out on time.

“I believe that seeing is believing for many of us,” says Koepp. “It may be defined how the brand new means might be extra environment friendly and higher, but it surely’s that visible of seeing the whole thing operating that truly adjustments other folks minds about some great benefits of the brand new workflows.”

Within the 4 Partitions

Automation creates environment friendly drift for All International Equipment

All WorldMachinery Provide, Roscoe, IL.

Merchandise treated: electric, hydraulic, lubrication, pneumatic, mechanical and sealing portions.

SKUs: About 15,000 throughout all departments, with 12,000 SKUs within the warehouse

Sq. photos of warehouse: 33,120 sq. ft

Distribution staff: 10

Orders according to day: 225

Shifts: One shift, staggered hours from 7 a.m. – 5:30 p.m.

By means of deploying 4 vertical raise modules (VLMs), All International Equipment Provide advanced its order selecting hard work potency and stored vital area as opposed to its earlier structure that trusted rack and shelving to carry all stock. Now kind of two thirds of the stock that used to be stretching the DC to its garage limits sits within the 4 VLMs.

The DC and headquarters are multi-purpose, with warehouse area, an engineering division, and company control purposes. The warehouse construction additionally has some coaching and assembly area, along with the 33,130-square-foot warehouse area.

The warehouse has 3 dock doorways (1) to deal with each inbound and outbound shipments. Maximum inbound items arrive within the morning, and maximum outbound shipments happen within the afternoon, going out through both parcel or less-than-truckload (LTL) shipments.

Inbound items wanted for VLM replenishment or to fill buyer orders are manually carted over to a collection of receiving stations (2) close to the DC’s conveyor machine (3), which has coloration sensors to locate the colour of a tote (both gray or blue boxes), and correctly course totes during the machine.

The VLMs (4) paintings on a goods-to-person idea, with trays had to fill orders being introduced all the way down to the get right of entry to window stage of the VLM. Each and every VLM has an LED gentle bar and light-weight beam guidelines to lead pickers. The website makes use of a batch select procedure, with order totes for each and every processed at a batching station house (5) adjoining to the VLMs on a piece of conveyor. Because of this, there’s minimum strolling/commute to fill orders within the VLM zone, as opposed to the former strategy of manually selecting items from aisles.

Orders picked finished on the VLM zone are conveyed at once to pack out and manifest stations (6) through the conveyor machine. At those stations, buddies close up, manifest, seal, label and degree the products for outbound transport.

On the other hand, if an order requires different pieces from the DC’s shelf founded, slender aisle garage zone (7) or one of the crucial high-bay garage (8) spaces of the warehouse, the order tote is routed to an induction level at the conveyor machine the place items manually picked to cart from the ones spaces can also be dropped off. The absolutely finished order totes are then conveyed to packing/manifesting.

For ultimate transport, smaller sized parcels or cartons are carted to the proper dock door. For orders of bigger items shipped on pallets or crates, there’s a guide procedure to finish the ones orders the usage of raise vans and produce them to the dock doorways for loading.
